Download ISO Clip typical details.
Product Details DRAFT
ISO Clip is engineered for ease and speed of installation
2.0" CLIP
3.25" CLIP
4.75" CLIP
7.75" CLIP
If you require our CAD Typical details please contact us.
Compatible Insulation Depths
Versatility
The four sizes of ISO Clip accommodate insulation depths anywhere from 2” to 10”.

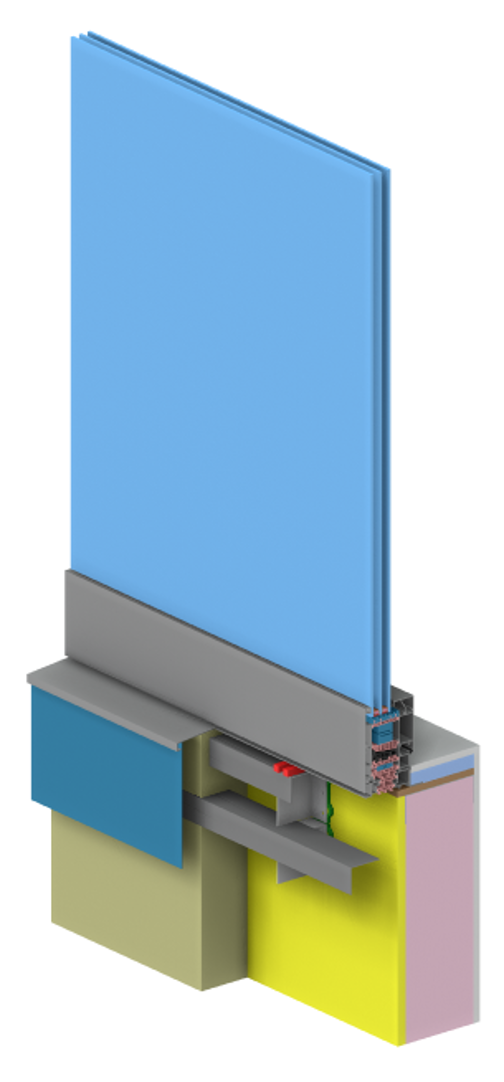

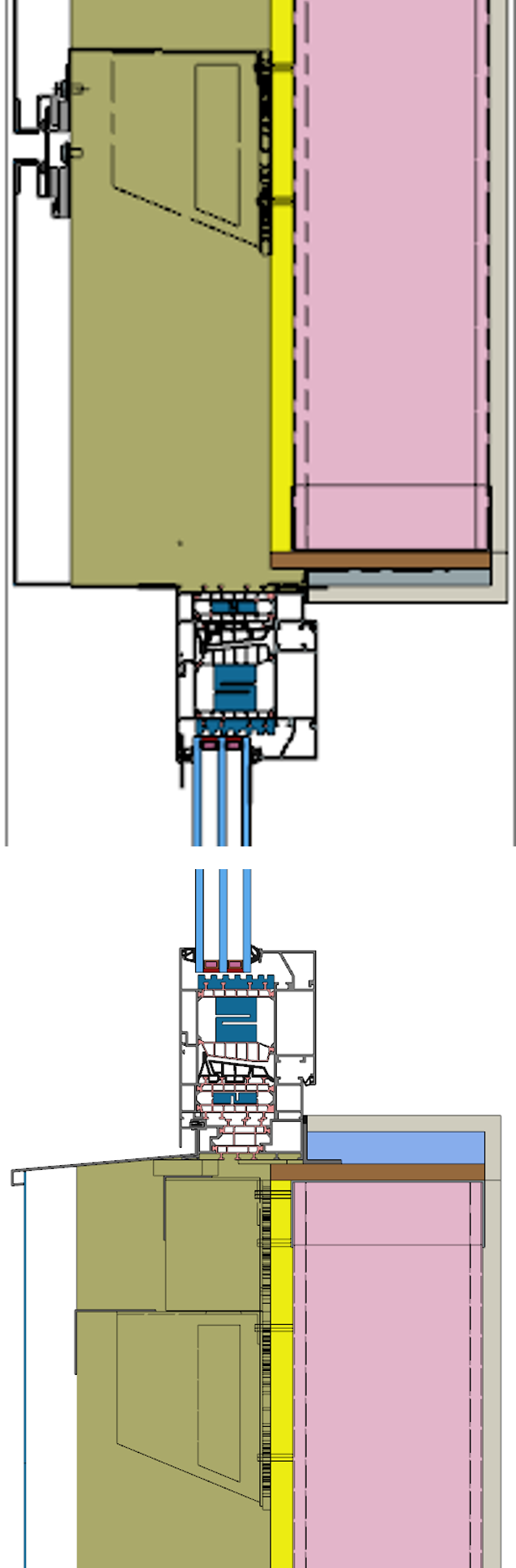

ISO Clip Window-to-Wall Connection
Stop thermal bridging right at the frame line. Our thermally broken ISO Clip system extends continuous insulation directly to your window perimeter delivering robust support for projected fenestration while enhancing the overall R-value of your building envelope.
Decoupled from the backup wall
Mechanically isolates the cladding support from the structural wall to minimize linear thermal bridging at the window perimeter.
Aligned with the insulation plane
Positions the window frame directly in line with the wall’s continuous insulation plane to ensure an unbroken thermal boundary.
Intermittent non-continuous
Replaces a continuous shelf angle with intermittent ISO Clips to support the window frame, drastically reducing heat transfer around the opening.
Request Technical Details & Reports
Interested in this connection? Contact us to receive the detail PDF, thermal modeling, and structural reports.
